想要开发一个好用的渲染引擎,加载/编辑模型和使用骨骼动画的功能是必不可少的,由于市面上的模型格式过多并且标准也互不统一,所以想要自己写出读取模型的算法是十分困难的,因此可以借助好用的模型加载库来完成这个工作,Assimp就是一个开源且支持格式较多的模型加载库,官方声称Assimp可以加载的模型格式有40种之多,但是实际上在加载一些模型格式时会时常出现错误,经本人测试部分fbx,部分3ds和所有obj模型能够成功加载的,由于fbx拥有骨骼动画的功能,所以我基本以使用fbx为主(但想要加载全部fbx模型还是只能用FBX SDK完成)。

Assimp架构

Assimp库使用的架构是典型的树状结构,而这个架构在模型加载中也是比较好用的,因为它足够清晰,也便于理清模型当中部件的父子关系,下图简单地呈现了Assimp的架构:

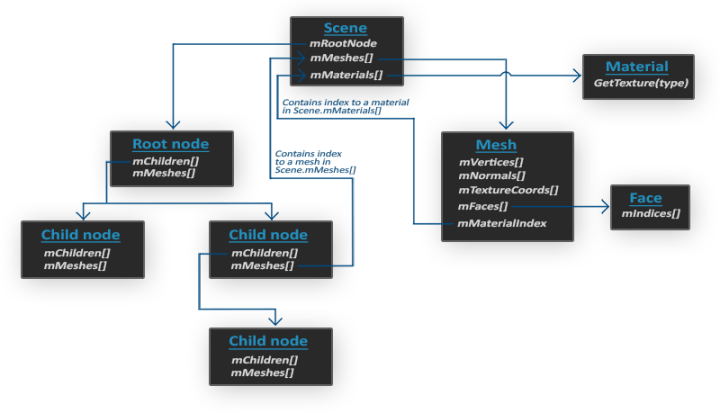

Assimp架构(图片来自LearnOpenGL)

Struct Content
aiScene mRootNode,mMeshes,mMaterials,mAnimations,mTextures,mLights,mCameras
aiNode mTransformation,mParent,mChildren,mMeshes(索引)
aiMesh mVertices,mNormals,mTangents,mBitangents,mColors,mTextureCoords,mFaces,mBones,mAnimMeshes
aiFace mIndices
aiMaterial GetTextureCount(…),GetTexture(…)
aiAnimation mDuration,mTicksPerSecond,mChannels,mMeshChannels
aiNodeAnim mNodeName,mPositionKeys,mRotationKeys,mScalingKeys,mPostState

Model类

Model类装载了加载模型的所有方法,后面我们的所有代码都会添加至这个类中:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
struct MaterialInfo {
UINT diffuseMaps;
};

class Mesh {
public:
struct RenderInfo {
std::vector<Vertex> vertices;
std::vector<UINT> indices;
};

std::vector<Vertex> vertices;
std::vector<UINT> indices;
UINT materialIndex;

Mesh(std::vector<Vertex> vertices, std::vector<UINT> indices, UINT materialIndex) {
this->vertices = vertices;
this->indices = indices;
this->materialIndex = materialIndex;
}
};

class Model {
public:
Model(std::string path);
std::vector<Mesh> meshes;
std::vector<MaterialInfo> materials;
std::vector<Mesh::RenderInfo> renderInfo;
std::vector<std::string> texturePath;

private:
std::string directory;

void ProcessNode(const aiScene* scene, aiNode* node);
Mesh ProcessMesh(const aiScene* scene, aiMesh* mesh);
UINT SetupMaterial(std::vector<UINT> diffuseMaps);
void SetupRenderInfo();
std::vector<UINT> LoadMaterialTextures(aiMaterial* mat, aiTextureType type);
};

获取Scene

在所有的工作开始之前,必然是使用Assimp将模型从本机读取出来,代码如下:

1
2
3
4
5
6
7
Model::Model(std::string path) {
Assimp::Importer importer;
const aiScene* scene = importer.ReadFile(path, aiProcess_Triangulate | aiProcess_GenNormals | aiProcess_FlipUVs | aiProcess_CalcTangentSpace);
directory = path.substr(0, path.find_last_of('\\')) + '\\';
ProcessNode(scene, scene->mRootNode);
SetupRenderInfo();
}

ReadFile方法常用的几个参数意义如下:

aiProcess 意义
aiProcess_Triangulate 以三角形图元读取模型网格
aiProcess_GenNormals 自动生成法线
aiProcess_FlipUVs 翻转UV(是否使用视情况而定)
aiProcess_CalcTangentSpace 自动计算切线空间
aiProcess_FlipWindingOrder 反转绕序
aiProcess_JoinIdenticalVertices 合并相同顶点

遍历节点

从Scene中获取根节点后,就可以从根节点开始,不断递归遍历其下的子节点,最终做到处理完所有节点拥有的数据,代码如下:

1
2
3
4
5
6
7
8
9
10
void Model::ProcessNode(const aiScene* scene, aiNode* node) {
for (size_t i = 0; i < node->mNumMeshes; i++) {
aiMesh* mesh = scene->mMeshes[node->mMeshes[i]];
meshes.push_back(ProcessMesh(scene, mesh));
}

for (size_t i = 0; i < node->mNumChildren; i++) {
ProcessNode(scene, node->mChildren[i]);
}
}

如果在该节点下找到挂载的Mesh,就直接处理该Mesh数据并将其添加至meshes容器当中,需要注意的是aiNode仅仅保存Mesh对应的索引,所以需要真正获得aiMesh还需要到Scene中去查找。

处理网格

从Scene中获取到aiMesh后,就可以加载出aiMesh中的数据,包括模型的顶点,索引,法向量,切向量,纹理坐标,材质索引相关信息,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Mesh Model::ProcessMesh(const aiScene* scene, aiMesh* mesh) {
std::vector<Vertex> vertices;
std::vector<UINT> indices;

for (size_t i = 0; i < mesh->mNumVertices; i++) {
Vertex vertex;
vertex.position.x = mesh->mVertices[i].x;
vertex.position.y = mesh->mVertices[i].y;
vertex.position.z = mesh->mVertices[i].z;

vertex.normal.x = mesh->mNormals[i].x;
vertex.normal.y = mesh->mNormals[i].y;
vertex.normal.z = mesh->mNormals[i].z;

vertex.tangent.x = mesh->mTangents[i].x;
vertex.tangent.y = mesh->mTangents[i].y;
vertex.tangent.z = mesh->mTangents[i].z;

if (mesh->mTextureCoords[0]) {
vertex.texCoord.x = mesh->mTextureCoords[0][i].x;
vertex.texCoord.y = mesh->mTextureCoords[0][i].y;
}
else {
vertex.texCoord = { 0.0f, 0.0f };
}

vertices.push_back(vertex);
}

for (size_t i = 0; i < mesh->mNumFaces; i++) {
aiFace face = mesh->mFaces[i];
for (size_t j = 0; j < face.mNumIndices; j++)
indices.push_back(face.mIndices[j]);
}

std::vector<UINT> diffuseMaps;
if (mesh->mMaterialIndex >= 0) {
aiMaterial* material = scene->mMaterials[mesh->mMaterialIndex];
diffuseMaps = LoadMaterialTextures(material, aiTextureType_DIFFUSE);
}
UINT materialIndex = SetupMaterial(diffuseMaps);

return Mesh(vertices, indices, materialIndex);
}

需要注意的是,索引并非直接存储在aiMesh中,而是存储在aiMesh下的aiFace中,由于在导入模型时使用了aiProcess_Triangulate,这里的Face也就基本是三角形图元,拥有3个Indices,将它们读取出来添加进总的索引即可。

读取材质

每一个Mesh可以有唯一个mMaterialIndex材质索引,同样的,可以使用这个材质索引在Scene中查询到其对应的aiMaterial,里面存储了材质信息,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
std::vector<UINT> Model::LoadMaterialTextures(aiMaterial* mat, aiTextureType type) {
std::vector<UINT> textures;
for (UINT i = 0; i < mat->GetTextureCount(type); i++) {
aiString str;
mat->GetTexture(type, 0, &str);
bool skip = false;
std::string texturePath = directory + str.C_Str();
for (UINT j = 0; j < this->texturePath.size(); j++) {
if (this->texturePath[j] == texturePath) {
textures.push_back(j);
skip = true;
break;
}
}
if (!skip) {
textures.push_back(this->texturePath.size());
this->texturePath.push_back(texturePath);
}
}
return textures;
}

想要从aiMaterial中获取纹理贴图,首先必须明确自己想要的贴图种类,Assimp中用aiTextureType规定了一些常见的贴图种类,有漫反射贴图,镜面反射贴图,法线贴图,光照贴图,高度图等等,如果只使用漫反射贴图的话指定aiTextureType_DIFFUSE即可。

用aiMaterial下的GetTextureCount方法获取纹理贴图数量后,使用GetTexture方法获取对应纹理贴图的相对路径,这里我为了避免相同贴图的重复加载,设定一个将贴图路径与已经添加过的贴图路径进行比较的算法,做到所有贴图只会被添加一次。

返回的textures则代表了Mesh对应贴图在所有贴图中的索引位置,确保之后绘制Mesh的时候使用正确的纹理贴图。

SetupMaterial使用了类似的方法来确保不会有相同的Material被重复创建,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
UINT Model::SetupMaterial(std::vector<UINT> diffuseMaps) {
MaterialInfo material;
if (diffuseMaps.size() > 0)
material.diffuseMaps = diffuseMaps[0];
else
material.diffuseMaps = 0;

UINT materialIndex;
bool skip = false;
for (UINT i = 0; i < materials.size(); i++) {
if (CompareMaterial(materials[i], material)) {
materialIndex = i;
skip = true;
break;
}
}
if (!skip) {
materialIndex = materials.size();
materials.push_back(material);
}
return materialIndex;
}

bool CompareMaterial(MaterialInfo dest, MaterialInfo source) {
bool isSame = false;
if (dest.diffuseMaps == source.diffuseMaps)
isSame = true;
else
isSame = false;
return isSame;
}

使用Material而非Texture在仅仅有一个漫反射贴图的时候似乎看不出意义,因为两者几乎等同,但当一个Mesh需要同时使用多个贴图时(例如同时使用漫反射贴图和法线贴图),使用Material来存储Texture就显得十分有必要,同时这也方便我们之后对于材质内容的扩展。

提取渲染数据

在之前,我们已经获取了所有Mesh的顶点和索引,接下来要做的就是将它们全部提取出来,便于之后使用DrawCall绘制:

1
2
3
4
5
6
7
8
9
10
11
12
13
void Model::SetupRenderInfo() {
renderInfo.resize(materials.size());

for (UINT i = 0; i < meshes.size(); i++) {
UINT index = meshes[i].materialIndex;
UINT indexOffset = renderInfo[index].vertices.size();

for (UINT j = 0; j < meshes[i].indices.size(); j++)
renderInfo[index].indices.push_back(meshes[i].indices[j] + indexOffset);

renderInfo[index].vertices.insert(renderInfo[index].vertices.end(), meshes[i].vertices.begin(), meshes[i].vertices.end());
}
}

我们默认一个mesh使用一个材质,同时用材质作为区分模型部件的标准,也就是说,有多少个材质我们就使用多少个DrawCall,这确保了DrawCall数量的最小化,使得绘制效率尽可能高。

SkinnedModel类

藉由上面的Model类作为一个跳板,接下来我们就可以考虑添加骨骼与蒙皮动画到我们的模型当中了,我将这个新的类命名为SkinnedModel类,当然这个新的类会比原来的庞大许多:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
class SkinnedMesh {
public:
struct RenderInfo {
std::vector<SkinnedVertex> vertices;
std::vector<UINT> indices;
};

std::vector<SkinnedVertex> vertices;
std::vector<UINT> indices;
UINT materialIndex;

SkinnedMesh(std::vector<SkinnedVertex> vertices, std::vector<UINT> indices, UINT materialIndex) {
this->vertices = vertices;
this->indices = indices;
this->materialIndex = materialIndex;
}
};

class SkinnedModel {
public:
struct BoneData {
UINT boneIndex[NUM_BONES_PER_VERTEX];
float weights[NUM_BONES_PER_VERTEX];
void Add(UINT boneID, float weight) {
for (size_t i = 0; i < NUM_BONES_PER_VERTEX; i++) {
if (weights[i] == 0.0f) {
boneIndex[i] = boneID;
weights[i] = weight;
return;
}
}
//insert error program
MessageBox(NULL, L"bone index out of size", L"Error", NULL);
}
};
struct BoneInfo {
bool isSkinned = false;
glm::mat4x4 boneOffset;
glm::mat4x4 defaultOffset;
int parentIndex;
};

SkinnedModel(std::string path);
std::vector<SkinnedMesh> meshes;
std::vector<MaterialInfo> materials;
std::vector<SkinnedMesh::RenderInfo> renderInfo;
std::vector<std::string> texturePath;

void GetBoneMapping(std::unordered_map<std::string, UINT>& boneMapping) {
boneMapping = this->boneMapping;
}
void GetBoneOffsets(std::vector<glm::mat4x4>& boneOffsets) {
for (size_t i = 0; i < boneInfo.size(); i++)
boneOffsets.push_back(boneInfo[i].boneOffset);
}
void GetNodeOffsets(std::vector<glm::mat4x4>& nodeOffsets) {
for (size_t i = 0; i < boneInfo.size(); i++)
nodeOffsets.push_back(boneInfo[i].defaultOffset);
}
void GetBoneHierarchy(std::vector<int>& boneHierarchy) {
for (size_t i = 0; i < boneInfo.size(); i++)
boneHierarchy.push_back(boneInfo[i].parentIndex);
}
void GetAnimations(std::unordered_map<std::string, AnimationClip>& animations) {
animations.insert(this->animations.begin(), this->animations.end());
}

private:
std::string directory;

void ProcessNode(const aiScene* scene, aiNode* node);
SkinnedMesh ProcessMesh(const aiScene* scene, aiMesh* mesh);
UINT SetupMaterial(std::vector<UINT> diffuseMaps);
void SetupRenderInfo();
std::vector<UINT> LoadMaterialTextures(aiMaterial* mat, aiTextureType type);

//Bone/Animation Information
std::vector<BoneInfo> boneInfo;
std::unordered_map<std::string, UINT> boneMapping;
std::unordered_map<std::string, AnimationClip> animations;

void LoadBones(const aiMesh* mesh, std::vector<BoneData>& bones);
void ReadNodeHierarchy(const aiNode* node, int parentIndex);
void LoadAnimations(const aiScene* scene);
};

SkinnedModel::SkinnedModel(std::string path) {
Assimp::Importer importer;
const aiScene* scene = importer.ReadFile(path, aiProcess_Triangulate | aiProcess_GenNormals | aiProcess_FlipUVs | aiProcess_CalcTangentSpace);
directory = path.substr(0, path.find_last_of('\\')) + '\\';
ReadNodeHierarchy(scene->mRootNode, -1);
ProcessNode(scene, scene->mRootNode);
SetupRenderInfo();
LoadAnimations(scene);
}

SkinnedModel类下有两个用于辅助骨骼加载的结构体,一个是BoneData,与顶点相对应,指定了每个顶点所对应的绑骨(骨骼索引,蒙皮权重),一个是BoneInfo,与骨骼相对应,指定了每个骨骼的父子关系和变换。boneMapping是一个用骨骼名字来查找骨骼索引的无序映射表,可以方便查找boneInfo。

梳理树状层级

在不使用骨骼蒙皮动画的时候,模型自身部件的父子关系显得可有可无,因为我们实际并不需要用到,但一旦使用骨骼蒙皮动画,由于父子关系会涉及到层级之间的(矩阵)变换关系,因此梳理一遍树状层级就显得不可缺少:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
void SkinnedModel::ReadNodeHierarchy(const aiNode* node, int parentIndex) {
BoneInfo boneInfo;

UINT boneIndex = this->boneInfo.size();
boneMapping[node->mName.C_Str()] = boneIndex;

boneInfo.boneOffset = glm::mat4(1.0f);
boneInfo.parentIndex = parentIndex;
boneInfo.defaultOffset = {
node->mTransformation.a1, node->mTransformation.b1, node->mTransformation.c1, node->mTransformation.d1,
node->mTransformation.a2, node->mTransformation.b2, node->mTransformation.c2, node->mTransformation.d2,
node->mTransformation.a3, node->mTransformation.b3, node->mTransformation.c3, node->mTransformation.d3,
node->mTransformation.a4, node->mTransformation.b4, node->mTransformation.c4, node->mTransformation.d4
};
this->boneInfo.push_back(boneInfo);

for (size_t i = 0; i < node->mNumChildren; i++)
ReadNodeHierarchy(node->mChildren[i], boneIndex);
}

这里同样使用递归来遍历整个树状层次,并将aiNode下的mTransformation存储为了骨骼的默认变换以便之后使用。

加载骨骼蒙皮数据

在ProcessMesh中,我加入了以下方法以便获取aiMesh下的mBones数据:

1
2
std::vector<BoneData> vertexBoneData(mesh->mNumVertices);
LoadBones(mesh, vertexBoneData);

LoadBones方法会为每个顶点生成所需用的骨骼数据,从而得到顶点与骨骼的对应关系,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
void SkinnedModel::LoadBones(const aiMesh* mesh, std::vector<SkinnedModel::BoneData>& boneData) {
for (size_t i = 0; i < mesh->mNumBones; i++) {
UINT boneIndex = 0;
std::string boneName(mesh->mBones[i]->mName.C_Str());

if (boneMapping.find(boneName) == boneMapping.end()) {
//insert error program
}
else
boneIndex = boneMapping[boneName];

boneMapping[boneName] = boneIndex;

if (!boneInfo[boneIndex].isSkinned) {
aiMatrix4x4 offsetMatrix = mesh->mBones[i]->mOffsetMatrix;
boneInfo[boneIndex].boneOffset = {
offsetMatrix.a1, offsetMatrix.b1, offsetMatrix.c1, offsetMatrix.d1,
offsetMatrix.a2, offsetMatrix.b2, offsetMatrix.c2, offsetMatrix.d2,
offsetMatrix.a3, offsetMatrix.b3, offsetMatrix.c3, offsetMatrix.d3,
offsetMatrix.a4, offsetMatrix.b4, offsetMatrix.c4, offsetMatrix.d4
};
boneInfo[boneIndex].isSkinned = true;
}

for (size_t j = 0; j < mesh->mBones[i]->mNumWeights; j++) {
UINT vertexID = mesh->mBones[i]->mWeights[j].mVertexId;
float weight = mesh->mBones[i]->mWeights[j].mWeight;
boneData[vertexID].Add(boneIndex, weight);
}
}
}

boneMapping已经在之前遍历树状层级的时候完成了构建,在这里我们只需要用boneName完成查找即可。aiBone下存有骨骼自身的偏移矩阵,将其存储在BoneInfo中;同样aiBone下还存有顶点蒙皮权重,暂时将其存储在BoneData中。

在读取顶点坐标/法向量/切向量的同时将蒙皮权重放进Vertex里,骨骼蒙皮权重规定了骨骼对一个顶点的造成的影响占比:

1
2
3
vertex.boneWeights.x = vertexBoneData[i].weights[0];
vertex.boneWeights.y = vertexBoneData[i].weights[1];
vertex.boneWeights.z = vertexBoneData[i].weights[2];

顶点着色器

修改顶点着色器的输入,在顶点数据中添加上骨骼蒙皮数据:

1
2
3
4
5
6
7
8
9
struct VertexIn {
float3 position;
float2 texCoord;
float3 normal;
float3 tangent;

float3 boneWeights;
uint4 boneIndices;
};

由于需要考虑到骨骼蒙皮对顶点产生的变换,所以我们需要在顶点着色器中添加一些计算步骤,HLSL代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
//SkinnedVS.hlsl
float3 posL = float3(0.0f, 0.0f, 0.0f); //Local Space
float3 normalL = float3(0.0f, 0.0f, 0.0f);
float3 tangentL = float3(0.0f, 0.0f, 0.0f);

/*Bone Animation*/
float weights[4] = { input.boneWeights.x, input.boneWeights.y, input.boneWeights.z, 1.0f - input.boneWeights.x - input.boneWeights.y - input.boneWeights.z };

for (int i = 0; i < 4; i++) {
posL += weights[i] * mul(boneTransforms[input.boneIndices[i]], float4(input.position, 1.0f)).xyz;
normalL += weights[i] * mul((float3x3)boneTransforms_inv_trans[input.boneIndices[i]], input.normal);
normalL += weights[i] * mul((float3x3)boneTransforms[input.boneIndices[i]], input.normal);
}

这里的计算也并不复杂,分别将各个骨骼的蒙皮权重乘以骨骼变换矩阵再乘以初始坐标(向量),最后再逐个相加,就能得到需要的结果,这可以放在MVP矩阵变换之前执行。

骨骼动画

一些基本数据结构和功能,会在加载骨骼动画时使用到,贴在下面方便查看:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
struct VectorKey {
float timePos;
glm::vec3 value;
};

struct QuatKey {
float timePos;
glm::qua<float> value;
};

class BoneAnimation {
public:
float GetStartTime()const;
float GetEndTime()const;
void Interpolate(float t, glm::mat4x4& M);

std::vector<VectorKey> translation;
std::vector<VectorKey> scale;
std::vector<QuatKey> rotationQuat;

glm::mat4x4 defaultTransform;

private:
glm::vec3 LerpKeys(float t, const std::vector<VectorKey>& keys);
glm::qua<float> LerpKeys(float t, const std::vector<QuatKey>& keys);
};

class AnimationClip {
public:
float GetClipStartTime()const;
float GetClipEndTime()const;
void Interpolate(float t, std::vector<glm::mat4x4>& boneTransform);

std::vector<BoneAnimation> boneAnimations;
};

class SkinnedData {
public:
UINT GetBoneCount()const { return boneHierarchy.size(); }
float GetClipStartTime(const std::string& clipName)const;
float GetClipEndTime(const std::string& clipName)const;
void Set(std::vector<int>& boneHierarchy,
std::vector<glm::mat4x4>& boneOffsets,
std::unordered_map<std::string, AnimationClip>& animations);
void GetFinalTransform(const std::string& clipName, float timePos, std::vector<glm::mat4x4>& finalTransforms);

private:
std::vector<int> boneHierarchy;
std::vector<glm::mat4x4> boneOffsets;
std::unordered_map<std::string, AnimationClip> animations;
};

float BoneAnimation::GetStartTime()const {
float t0 = 0.0f;
float t1 = 0.0f;
float t2 = 0.0f;
if (translation.size() != 0) t0 = translation.front().timePos;
if (scale.size() != 0) t1 = scale.front().timePos;
if (rotationQuat.size() != 0) t2 = rotationQuat.front().timePos;

float timePos = t0 < t1 ? t0 : t1;
timePos = timePos < t2 ? timePos : t2;
return timePos;
}

float BoneAnimation::GetEndTime()const {
float t0 = 0.0f;
float t1 = 0.0f;
float t2 = 0.0f;
if (translation.size() != 0) t0 = translation.back().timePos;
if (scale.size() != 0) t1 = scale.back().timePos;
if (rotationQuat.size() != 0) t2 = rotationQuat.back().timePos;

float timePos = t0 > t1 ? t0 : t1;
timePos = timePos > t2 ? timePos : t2;
return timePos;
}

float AnimationClip::GetClipStartTime()const {
float t = FLT_MAX;
for (UINT i = 0; i < boneAnimations.size(); i++)
t = t < boneAnimations[i].GetStartTime() ? t : boneAnimations[i].GetStartTime();
return t;
}

float AnimationClip::GetClipEndTime()const {
float t = 0.0f;
for (UINT i = 0; i < boneAnimations.size(); i++)
t = t > boneAnimations[i].GetEndTime() ? t : boneAnimations[i].GetEndTime();
return t;
}

void AnimationClip::Interpolate(float t, std::vector<glm::mat4x4>& boneTransform) {
for (UINT i = 0; i < boneAnimations.size(); i++)
boneAnimations[i].Interpolate(t, boneTransform[i]);
}

float SkinnedData::GetClipStartTime(const std::string& clipName)const {
auto clip = animations.find(clipName);
return clip->second.GetClipStartTime();
}

float SkinnedData::GetClipEndTime(const std::string& clipName)const {
auto clip = animations.find(clipName);
return clip->second.GetClipEndTime();
}

void SkinnedData::Set(std::vector<int>& boneHierarchy,
std::vector<glm::mat4x4>& boneOffsets,
std::unordered_map<std::string, AnimationClip>& animations) {
this->boneHierarchy = boneHierarchy;
this->boneOffsets = boneOffsets;
this->animations = animations;
}

加载模型动画

Assimp的模型动画存储在aiScene下的aiAnimation中,在我们加载Scene的同时就可以将模型动画同时加载进来,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
void SkinnedModel::LoadAnimations(const aiScene* scene) {
for (size_t i = 0; i < scene->mNumAnimations; i++) {
AnimationClip animation;
std::vector<BoneAnimation> boneAnims(boneInfo.size());
aiAnimation* anim = scene->mAnimations[i];

float ticksPerSecond = anim->mTicksPerSecond != 0 ? anim->mTicksPerSecond : 25.0f;
float timeInTicks = 1.0f / ticksPerSecond;

for (size_t j = 0; j < anim->mNumChannels; j++) {
BoneAnimation boneAnim;
aiNodeAnim* nodeAnim = anim->mChannels[j];

for (size_t k = 0; k < nodeAnim->mNumPositionKeys; k++) {
VectorKey keyframe;
keyframe.timePos = nodeAnim->mPositionKeys[k].mTime * timeInTicks;
keyframe.value.x = nodeAnim->mPositionKeys[k].mValue.x;
keyframe.value.y = nodeAnim->mPositionKeys[k].mValue.y;
keyframe.value.z = nodeAnim->mPositionKeys[k].mValue.z;
boneAnim.translation.push_back(keyframe);
}
for (size_t k = 0; k < nodeAnim->mNumScalingKeys; k++) {
VectorKey keyframe;
keyframe.timePos = nodeAnim->mScalingKeys[k].mTime * timeInTicks;
keyframe.value.x = nodeAnim->mScalingKeys[k].mValue.x;
keyframe.value.y = nodeAnim->mScalingKeys[k].mValue.y;
keyframe.value.z = nodeAnim->mScalingKeys[k].mValue.z;
boneAnim.scale.push_back(keyframe);
}
for (size_t k = 0; k < nodeAnim->mNumRotationKeys; k++) {
QuatKey keyframe;
keyframe.timePos = nodeAnim->mRotationKeys[k].mTime * timeInTicks;
keyframe.value.x = nodeAnim->mRotationKeys[k].mValue.x;
keyframe.value.y = nodeAnim->mRotationKeys[k].mValue.y;
keyframe.value.z = nodeAnim->mRotationKeys[k].mValue.z;
keyframe.value.w = nodeAnim->mRotationKeys[k].mValue.w;
boneAnim.rotationQuat.push_back(keyframe);
}
boneAnims[boneMapping[nodeAnim->mNodeName.C_Str()]] = boneAnim;
}
animation.boneAnimations = boneAnims;

std::string animName(anim->mName.C_Str());
animName = animName.substr(animName.find_last_of('|') + 1, animName.length() - 1);

animations[animName] = animation;
}
}

从aiAnimation下的mChannels就可以得到每个节点对应的骨骼动画,因此我们同样按照boneMapping的索引存储在boneAnims下,这样就不会变得混乱。

骨骼动画也是逐帧动画的一种呈现形式,所以依旧依赖关键帧来记录信息,Assimp中每个关键帧都由mPositionKeys(位置),mScalingKeys(缩放),mRotationKeys(旋转)三个形式记录变换,其中位置和缩放用向量记录,旋转用四元数记录。

除了关键帧的变换我们需要知道以外,关键帧的时间点我们也需要知道,Assimp中用mTicksPerSecond来规定时间标准,求它的倒数得到timeInTicks(单位时间的长度),再用关键帧的mTime乘以timeInTicks得到标准化的关键帧时间点。

得知了关键帧的变换和时间点之后,就可以使用这些关键帧构建完整的骨骼动画了。

关键帧插值

通过关键帧插值推得过渡帧的变换数据,关键帧插值分为向量线性插值和四元数球面线性插值,用当前时刻在两个关键帧之间的百分比位置进行线性插值,直接使用GLM库简化掉了计算的细节,这里不再详细讲解Lerp和Slerp的方法,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
glm::vec3 BoneAnimation::LerpKeys(float t, const std::vector<VectorKey>& keys) {
glm::vec3 res = glm::vec3(0.0f);
if (t <= keys.front().timePos) res = keys.front().value;
else if (t >= keys.back().timePos) res = keys.back().value;
else {
for (size_t i = 0; i < keys.size() - 1; i++){
if (t >= keys[i].timePos && t <= keys[i + 1].timePos){
float lerpPercent = (t - keys[i].timePos) / (keys[i + 1].timePos - keys[i].timePos);
res = keys[i].value * lerpPercent + keys[i + 1].value * (1 - lerpPercent);
break;
}
}
}
return res;
}

glm::qua<float> BoneAnimation::LerpKeys(float t, const std::vector<QuatKey>& keys) {
glm::qua<float> res = glm::qua<float>();
if (t <= keys.front().timePos) res = keys.front().value;
else if (t >= keys.back().timePos) res = keys.back().value;
else {
for (size_t i = 0; i < keys.size() - 1; i++) {
if (t >= keys[i].timePos && t <= keys[i + 1].timePos) {
float lerpPercent = (t - keys[i].timePos) / (keys[i + 1].timePos - keys[i].timePos);
res = glm::slerp(keys[i].value, keys[i + 1].value, lerpPercent);
break;
}
}
}
return res;
}

将插值与矩阵变换综合在一起,得到当前帧的变换矩阵,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
void BoneAnimation::Interpolate(float t, glm::mat4x4& M) {
if (translation.size() == 0 && scale.size() == 0 && rotationQuat.size() == 0) {
M = defaultTransform;
return;
}

glm::vec3 T = glm::vec3(0.0f);
glm::vec3 S = glm::vec3(0.0f);
glm::qua<float> R = glm::qua<float>();

if (translation.size() != 0) T = LerpKeys(t, translation);
if (scale.size() != 0) S = LerpKeys(t, scale);
if (rotationQuat.size() != 0) R = LerpKeys(t, rotationQuat);

M = glm::translate(glm::mat4(1.0f), T) * glm::mat4_cast(R) * glm::scale(glm::mat4(1.0f), S);
}

最终变换矩阵

刚刚我们所作的都是对于一根骨头而言的,但是一个硕大的模型不可能只有一根骨头,而是拥有完整的骨架,并且骨骼之间相互具有父子关系,父物件的变换会对子物件造成影响,因此我们需要根据树状层级计算出一根骨头真正的变换矩阵,代码如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
void SkinnedData::GetFinalTransform(const std::string& clipName, float timePos, std::vector<glm::mat4x4>& finalTransforms) {
UINT numBones = boneOffsets.size();
std::vector<glm::mat4x4> toParentTransforms(numBones);

auto clip = animations.find(clipName);
clip->second.Interpolate(timePos, toParentTransforms);

std::vector<glm::mat4x4> toRootTransforms(numBones);
toRootTransforms[0] = toParentTransforms[0];

for (UINT i = 1; i < numBones; i++){
int parentIndex = boneHierarchy[i];
toRootTransforms[i] = toRootTransforms[parentIndex] * toParentTransforms[i];
}

for (UINT i = 0; i < numBones; i++) {
finalTransforms[i] = toRootTransforms[i] * boneOffsets[i];
}
}

获得最终变换矩阵的原理非常简单,就是把自身的变换矩阵乘以父物体的变换矩阵,得到自身对于模型根部的变换矩阵,除此以外,还需要乘以boneOffset即骨骼自身的偏移。

在渲染循环的每一帧更新骨骼动画,并获取最终变换矩阵,由着色器读取完成计算:

1
2
3
4
5
6
7
8
9
void UpdateSkinnedAnimation(float deltaTime) {
timePos += deltaTime;

//Loop
if (timePos > skinnedInfo.GetClipEndTime(clipName))
timePos = 0.0f;

skinnedData.GetFinalTransform(clipName, timePos, finalTransforms);
}
